Areal Density Measurement System

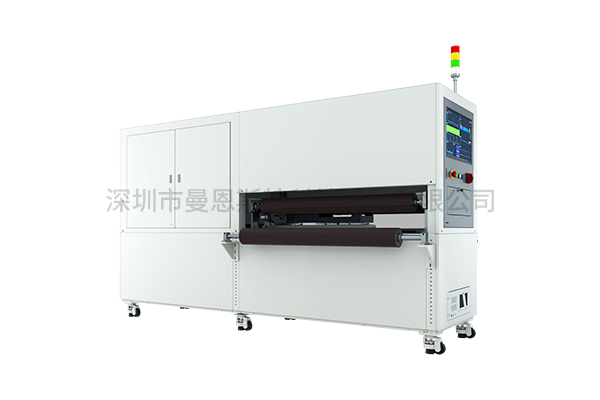

Full Inspection Area Density GaugeThe full inspection area density gauge integrates proprietary fan-shaped X-ray tube technology with a multi-array linear detector system. This combination enables dynamic, full-width inspection during the coating web process. It is the first solution to achieve 100% inspection coverage on high-speed production lines, along with closed-loop intelligent control and feedback.Detailed IntroductionProduct advantages
1、100% Full-Coverage Intelligent Detection System; Stores Areal Density Data per Square Millimeter in Both Directions, Enabling Full-Process Quality Traceability for Electrodes；
2、Real-time closed-loop control enables adaptive adjustment of the die head, enhancing cross-direction and machine-direction regulation efficiency by 5-10 times compared to conventional equipment；
3、Integrated with high-speed, sensitive scintillators capable of reading signals per pixel; simultaneously, optimized low-noise readout circuits synergize with micron-scale pixel arrays to achieve high contrast, significantly enhancing detector imaging performance；
4、Utilizing 20-30kV low-dose X-ray technology, the system significantly reduces shielding requirements while enhancing safety and cost efficiency

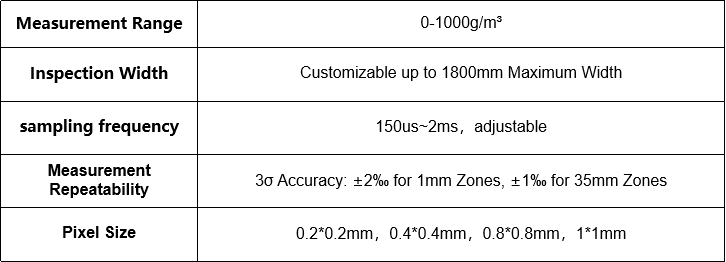

Product Parameters

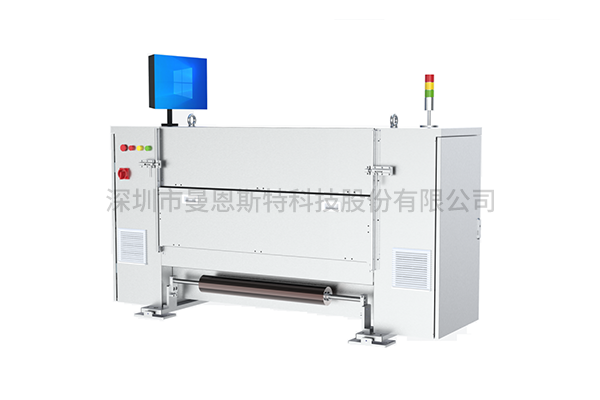

X-Ray/β-Ray Areal Density GaugeAs X/B rays penetrate the test material, their intensity undergoes attenuation through absorption, reflection, and scattering processes before and after transmission. This attenuation follows a negative exponential function relative to the material's areal density. This product provides online, non-contact, nondestructive measurement of areal density for lithium electrode coating processes and separator dispensing processes. It is also applicable for thickness or grammage testing in industries including metal foils, plastic films, sheets, and plates.Detailed IntroductionProduct advantages
1、Featuring a self-developed X-ray source paired with an ultra-low ripple high-voltage power supply, the system significantly enhances operational stability. Customized X-ray source configurations are available to meet application-specific requirements, delivering tailored solutions for diverse client needs；
2、The proprietary data acquisition module achieves a sampling frequency of 200 kHz with response time ≤10 ms, enhancing real-time measurement precision for industrial automation systems；
3、Proprietary algorithm processing；
4、Self-calibrating measurement technology actively compensates for ambient variations and source intensity decay, ensuring sustained accuracy without operator intervention；
5、Closed-loop automation delivers real-time optimization, streamlining material utilization while minimizing operational labor costs

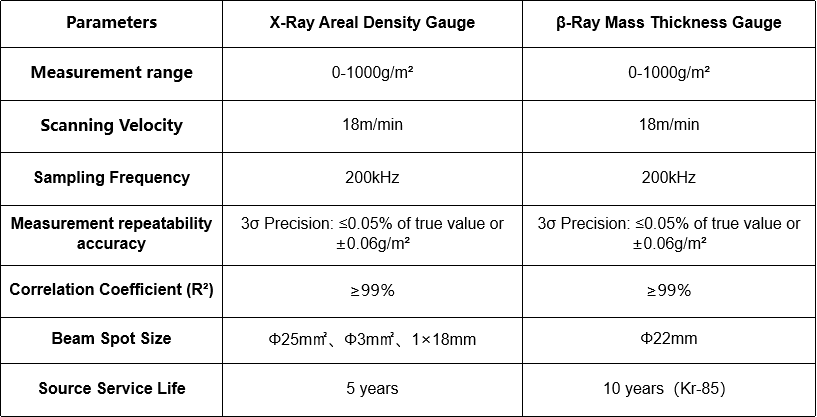

Product Parameters
