Metal AccessoriesManst Metal Fittings leverage advanced precision machining technology and a stringent quality control system to create a series of metal component products with outstanding performance, safety, and reliability. This products line includes metal gaskets, glue injection rods, screw pumps, pressure sensors, switching valves, constant pressure valves, and more.

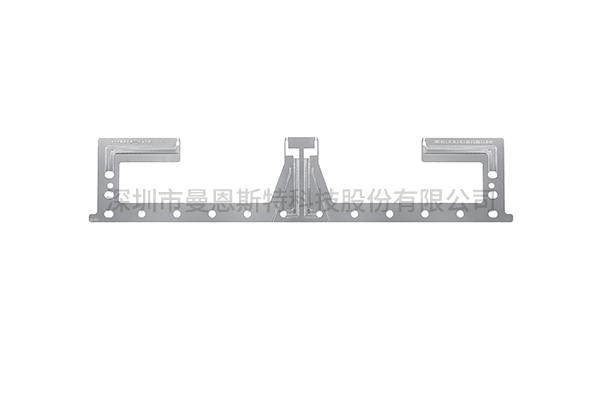

Normal shimThe shim is installed between the upper and lower dies of the die head, forming the coating area.Detailed Introduction

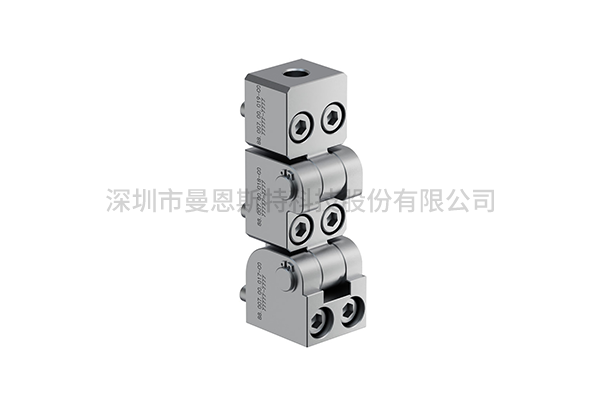

Double-Layer Hinge Assembly-Integrated TypeA mechanical device used to connect the upper, middle, and lower dies, allowing relative rotation between the three components. It is primarily employed for flipping operations in integrated double-layer coating slot dies.Detailed Introduction

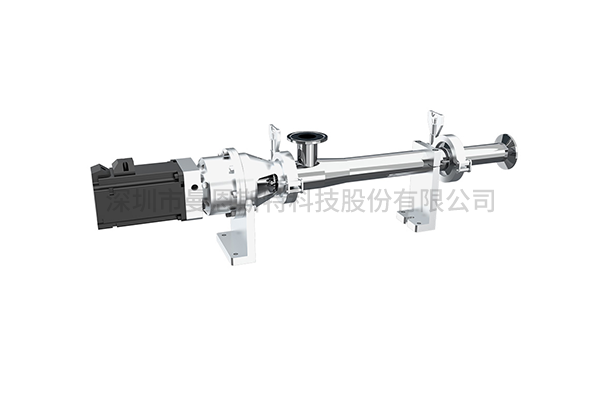

Screw PumpsEccentric Screw Pump delivers fluids without pulsation and with precise metering. Its core consists of a threaded rotor inside a matching stator, forming sealed cavities between them. As the rotor turns, it draws in viscous fluid through suction and continuously creates new cavities, pushing the liquid steadily toward the outlet—all within a fully sealed path.Detailed Introduction

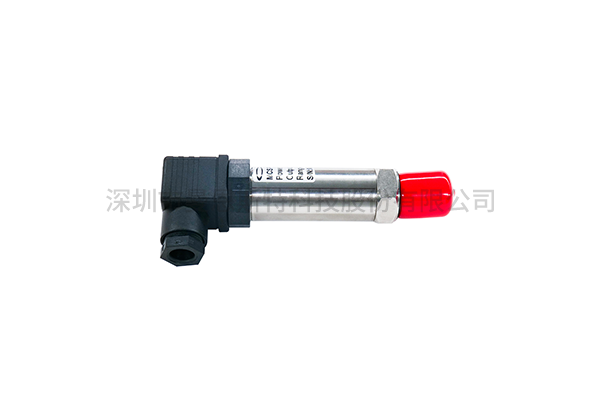

Pressure SensorsPressure sensors are the most commonly used sensors in industrial practice and widely applied in various industrial automation environment for detecting the pressure of fluids or gases.Detailed Introduction

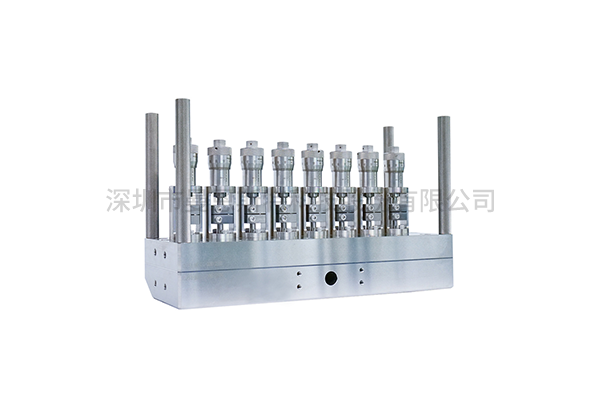

Precision Flow Rate Limiting ModuleAfter the slurry enters the dispenser module, and passes through the cavity, the pressure of each ceramic coating channel is adjusted by the micrometer head. The number of ceramic coating channels can be customized according to specific requirements. The diameter of the outlet can be designed according to the flow rate.Detailed Introduction

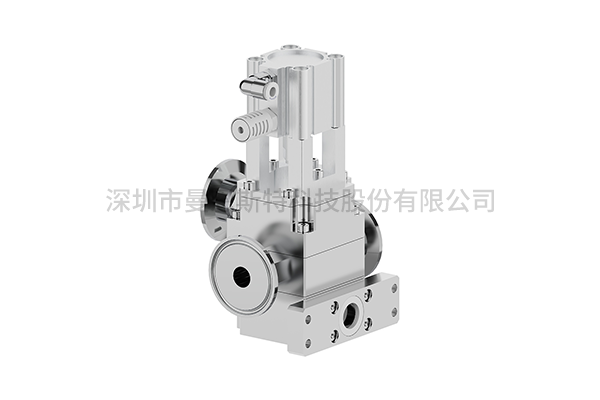

On-Off valveThe on-off valve, serving as the control switch for dispensing, features corrosion resistance, pressure resistance, pneumatic actuation, and easy installation.Detailed Introduction
Constant Pressure ValveMold Head Dispensing Kit，By replacing the clamping screws, the adhesive injection rod (with washers) is threaded into the clamping screw holes. Simultaneously, the gasket is replaced with one featuring a dispensing flow channel, enabling online adhesive dispensing. This kit is primarily designed for coating die heads without built-in dispensing functionality.Detailed Introduction

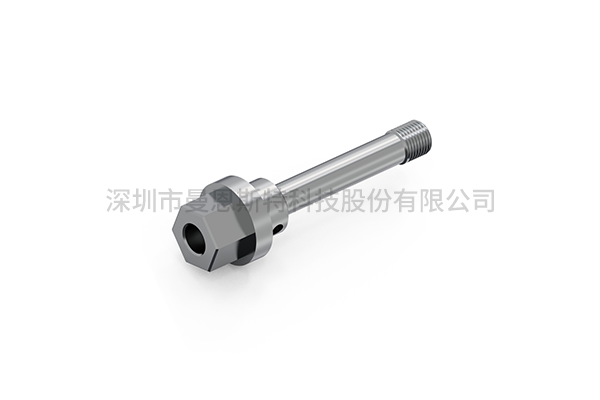

AccessoriesMold Head Dispensing Kit，By replacing the clamping screws, the adhesive injection rod (with washers) is threaded into the clamping screw holes. Simultaneously, the gasket is replaced with one featuring a dispensing flow channel, enabling online adhesive dispensing. This kit is primarily designed for coating die heads without built-in dispensing functionality.Detailed Introduction

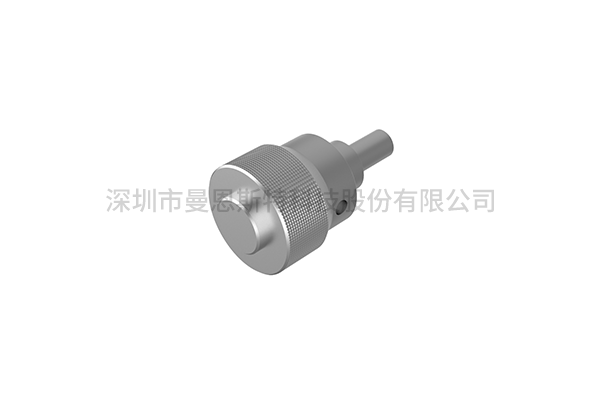

Micrometer -Optical ShaftThe differential head, also known as a micrometer head, is a measuring instrument based on the screw pair principle. It reads the axial displacement of the micrometer screw and is equipped with mounting provisions. Connected to the T-block of the coating die, it enables adjustment of the coating areal density.Detailed Introduction
