Wet-Process Electrolyte Thin-Film CoatingElectrolyte ultra-thin coating addresses industry-wide challenges in dry-film electrolyte formation by leveraging Mannster's coating expertise—our precision wet-coating technology perfectly resolves process limitations for thin-layer electrolyte applications, delivering unprecedented uniformity below 5μm.

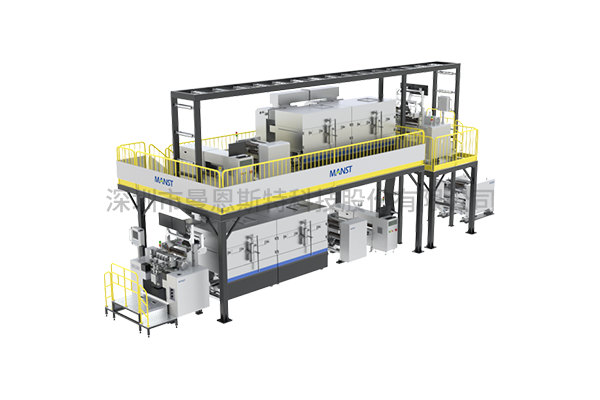

Electrolyte Coating Oven & CoaterSolid‑state electrolyte coating uniformly applies electrolyte to both sides of the electrode sheet via extrusion coating. First, the electrolyte is coated on the front side of the electrode sheet, which then enters an oven for drying and subsequent inspection. Next, the electrolyte is coated on the reverse side of the electrode sheet, followed by a second round of oven drying and inspection. Finally, the coated sheet is wound into rolls.Detailed IntroductionProduct advantages
1、State‑of‑the‑art pre‑metered sealed extrusion coating technology.
2、Thin‑layer extrusion coating:
3、 Non‑contact coating with the substrate surface, reducing the risk of secondary damage from contact‑based coating.
4、Thin‑layer coating with dry film thickness controllable between 1–15 µm.
5、 Enclosed coating design minimizes the risk of slurry contamination and property alteration.
3/High‑speed double‑side coating, delivering high production efficiency.

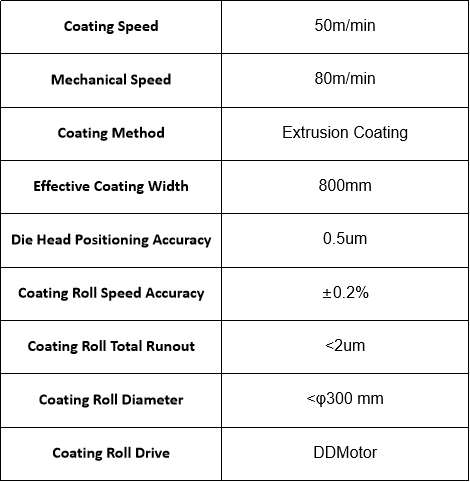

Product Parameters
