Folding Filter Element

Manst Fluid Technology Co., Ltd. specializes in industrial environmental dust removal, solid-liquid separation, and filtration. Our main products include capsule filter cartridges, folding filter cartridges, wound filter cartridges, dust removal bags, etc. We can provide customers in various industries with comprehensive solutions for filtration, separation, and purification.

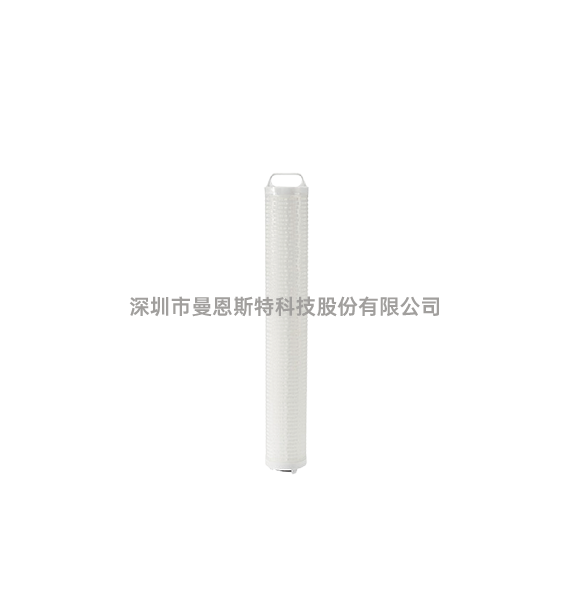

KPPF Series

The KPPF series filter cartridges feature a unique design with a coarse outer layer and a fine inner layer, allowing for progressive changes in filtration precision. This design showcases the filter cartridge's exceptional particle capture and contaminant retention capabilities while reducing flow resistance. The advanced folding technology increases the effective filtration area of the product, thereby enhancing flow rates. Additionally, the special design effectively captures gel-like impurities.
Detailed Introduction

Features
Reduced replacement frequency
Long service life, high cost performance
Gradient filtration, high contaminant retention capacity
Wide range of chemical compatibility
Product manufacturing environment: Cleanroom

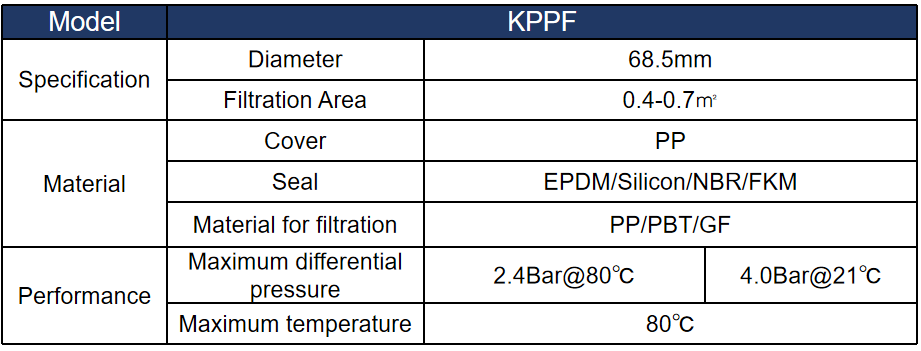

Cartridge Informations

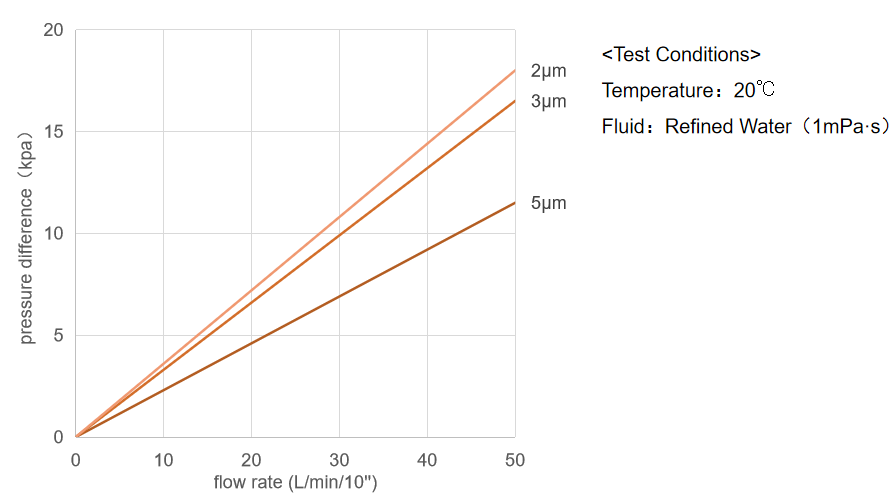

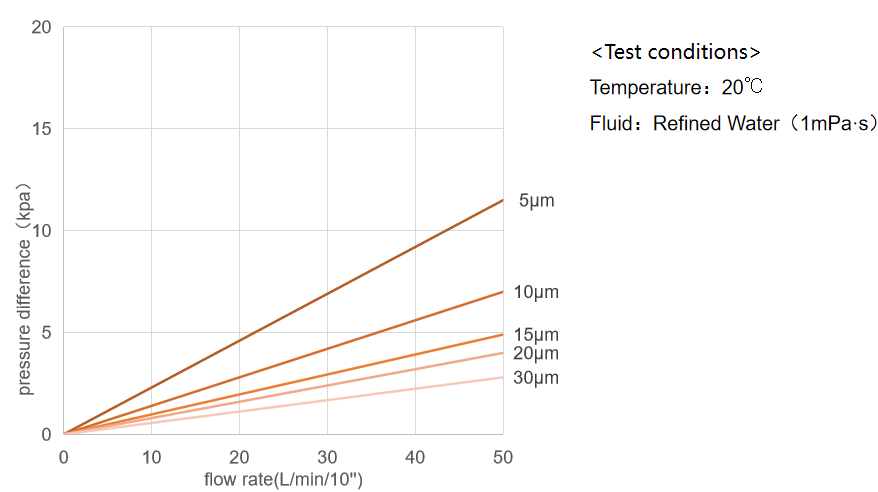

Flow Rate Properties
Applications
Filtration of various kinds of drinking alcohol
Precision filtration of mineral water
Pre-filtration of liquid in biomedical industry
Security filtration in reverse osmosis water treatment process

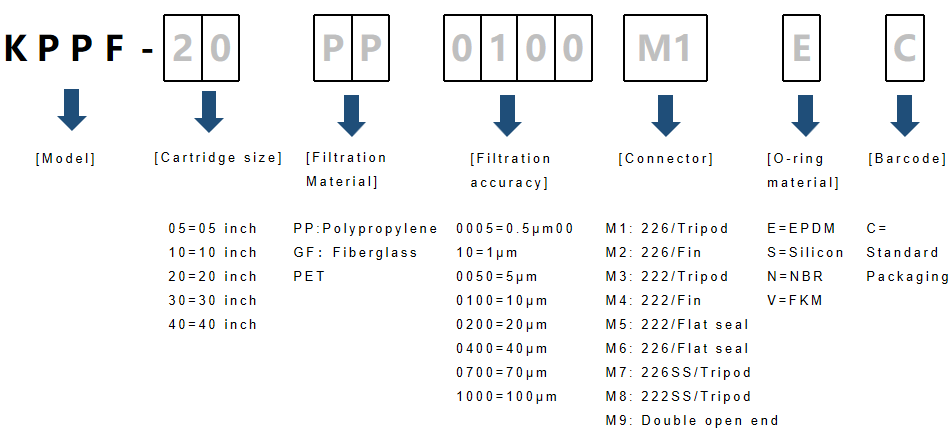

Model Selection
KPHDF Series

The KPHDF series filter cartridges feature a dual-layer design with a coarse outer layer and a fine inner layer, allowing for progressive changes in filtration precision, showcasing the filter cartridge's exceptional particle capture and contaminant retention capabilities while reducing flow resistance. The advanced folding technology increases the effective filtration area of the product, thereby improving flow rates. It is particularly suitable for the filtration of high-purity reagents.
Detailed Introduction

Features
High density
High flow rate, high life, high cost-effectiveness
Wide chemical compatibility
Stable filtration performance and outstanding impurity removal capability
Manufactured in a cleanroom environment

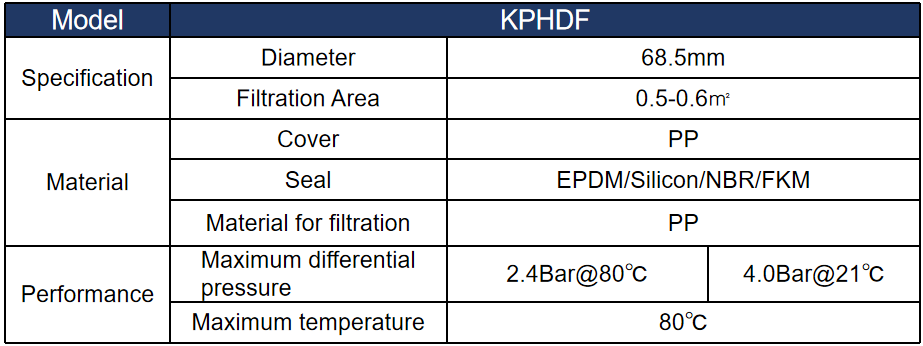

Cartridge Informations
Flow Rate Properties
Applications
Filtration of various reagents
Wet cleaning
Filtration of high-precision and high-concentration products

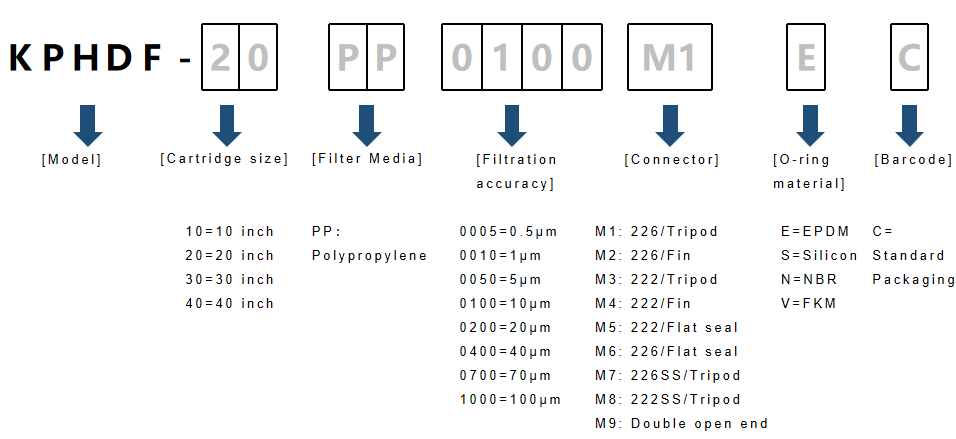

Model Selection

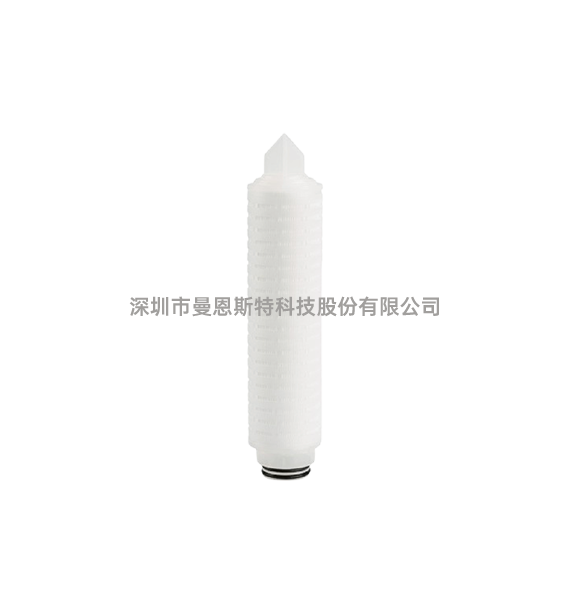

KEF Series PES Membrane

The KEF series filter cartridges utilize asymmetric polyethersulfone (PES) membranes, providing an extended service life. The advanced folding technology achieves reduced pressure loss and improved flow rates. Multiple options for filter cartridge length are available.
Detailed Introduction

Features
High flow rate, high life, high cost-effectiveness
Wide range of chemical compatibility
Stable filtration, excellent removal capability
Process environment: clean room
100% integrity tested

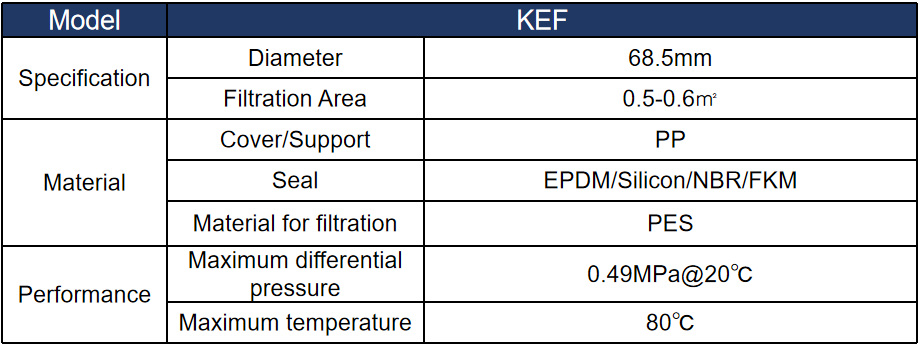

Cartridge Informations

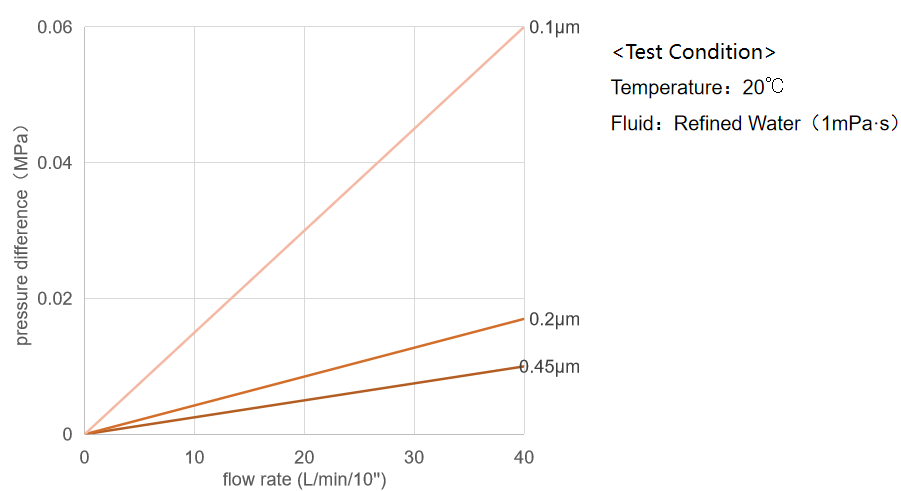

Flow Rate Properties
Applications
Filtration of ultrapure water in the field of electronics industry
Filtration of ultrapure water for the semiconductor industry

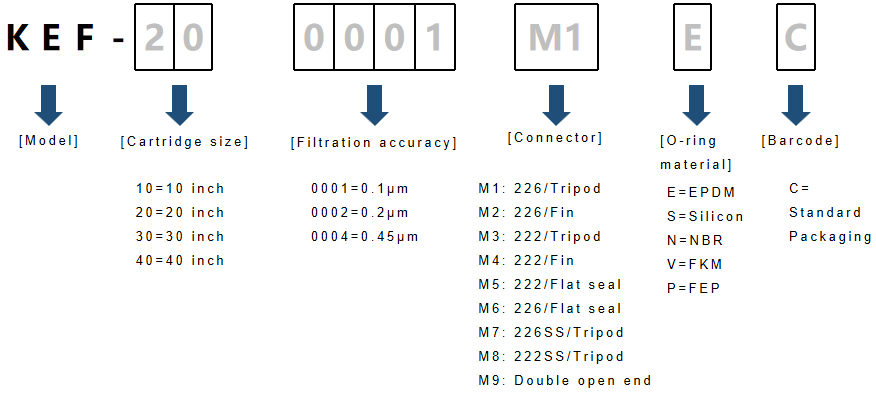

Model Selection

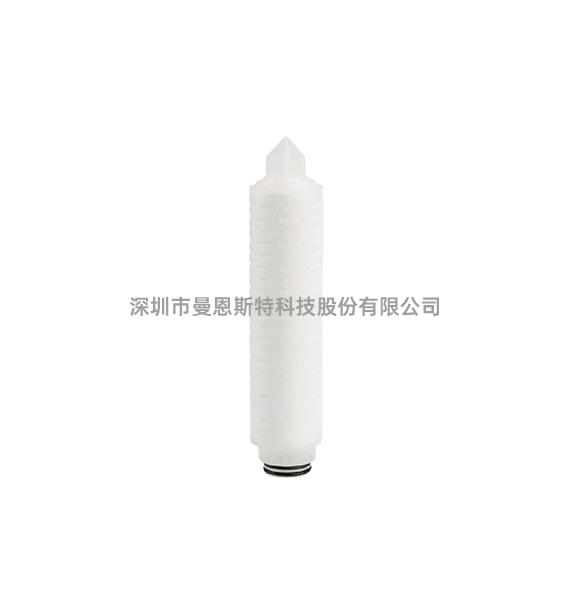

KTF Series PTFE Membrane

KTF series filter cartridges feature hydrophobic PTFE membranes, offering excellent chemical resistance and corrosion resistance, making them suitable for filtering strong oxidizing and corrosive solvents.
KTFH series filter cartridges utilize modified hydrophilic PTFE membranes, which also provide excellent chemical resistance and corrosion resistance, suitable for filtering strong oxidizing and corrosive solvents. They do not require pre-wetting and can directly filter aqueous solutions, reducing operational costs.
Detailed Introduction

Features
Efficient particle interception
Product manufacturing environment: Cleanroom
100% integrity tested
Outstanding chemical compatibility.

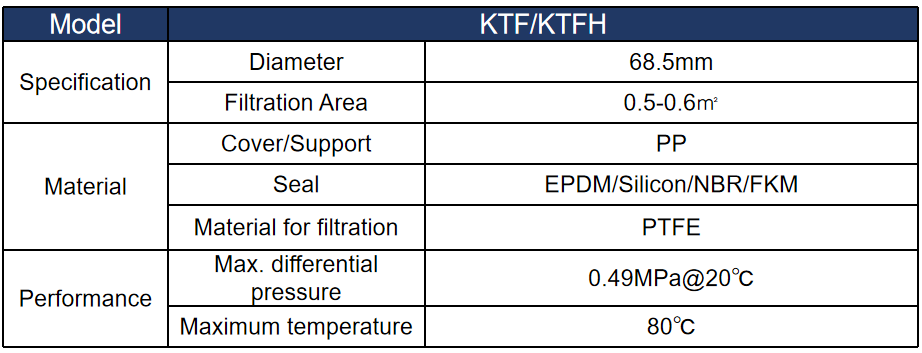

Cartridge Informations

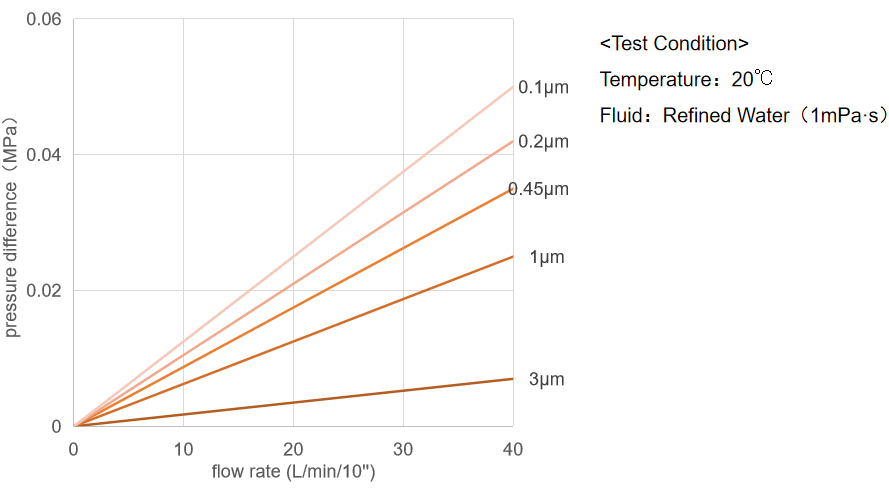

Flow Rate Properties
Applications
Filtration of organic solvents
Filtration of acidic and alkaline aqueous solutions
Functional resin filtration for the electronics industry

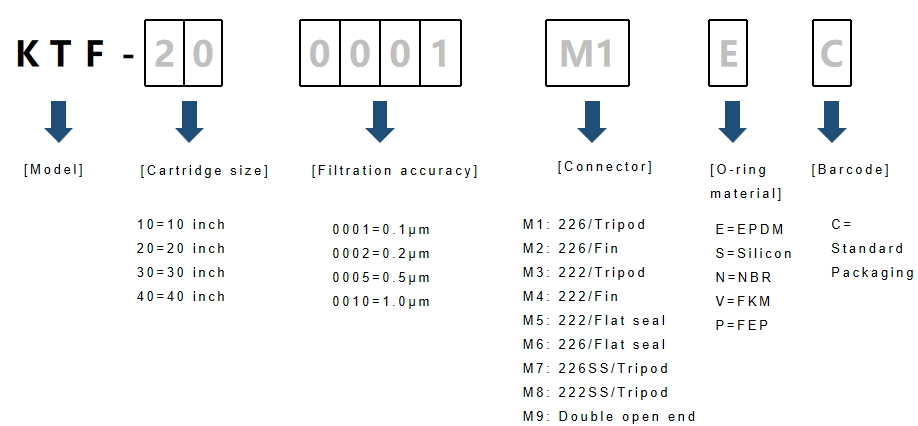

Model Selection

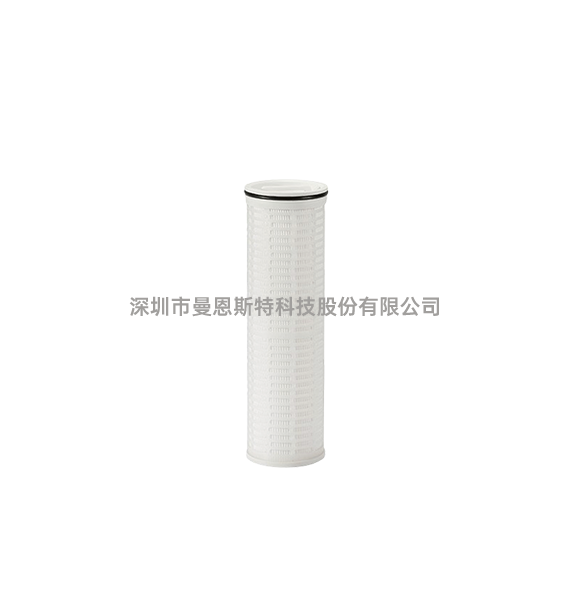

KLFF Series

The KLFF series filter cartridges feature a large-diameter structure and high-strength support materials, enabling them to maintain high flow rates even under high pressure differentials while offering low flow resistance. The internal-to-external flow direction and the gradient pore size of the filter media allow for the layered entrapment of impurities within the filter media, resulting in excellent particulate retention capabilities.
Detailed Introduction

Features
Large-diameter structure, low flow resistance
Wide range of applications
Excellent chemical compatibility
Gradient filtration for outstanding particulate retention capabilities
Product manufacturing environment: Cleanroom

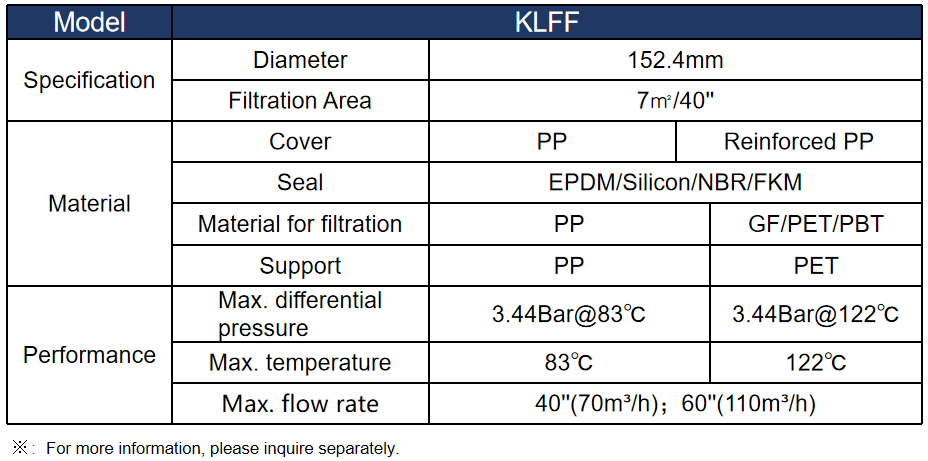

Cartridge informations

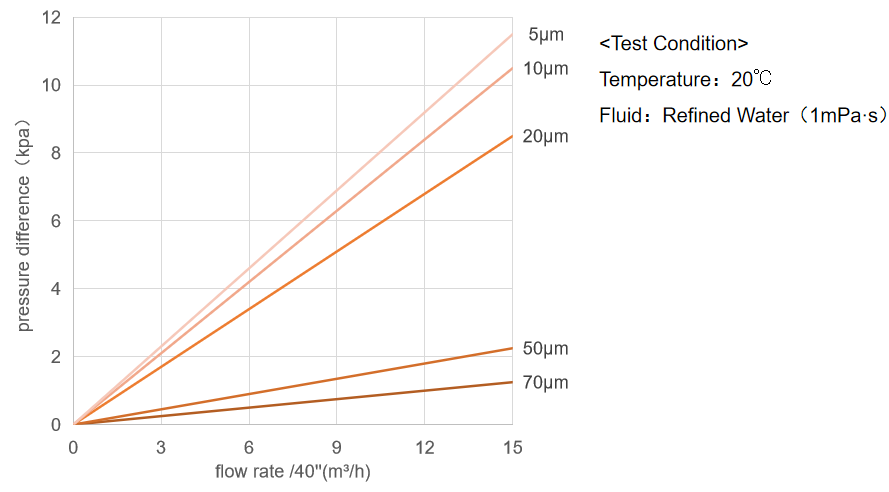

Flow Rate Properties
Applications
Process water in food
Variety of solvents, emergency cold water, salt water in petrochemical industry
Iron removal filter, condensate filter, stator cooling water in power plants
Various process fluids, process water, condensate, cooling water, wastewater treatment in industry
RO security filter, purification treatment of various process water

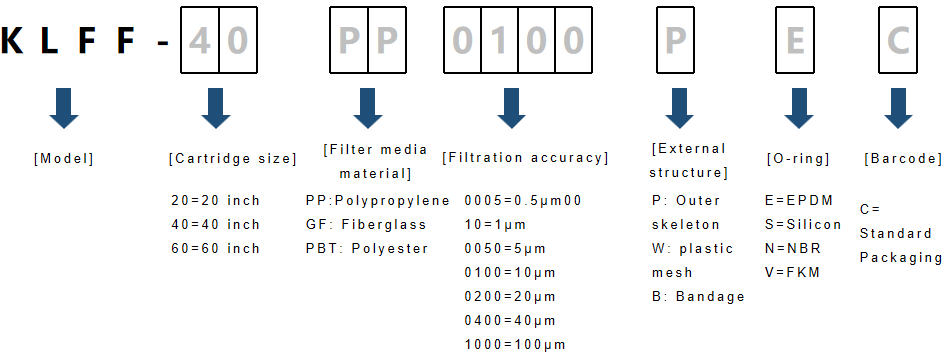

Model Selection
KKF Series

The KKF series filter cartridges feature a large-diameter structure and high-strength support materials, allowing for high flow rates even under high pressure differentials while maintaining low flow resistance. The filter cartridges employ an outer-to-inner flow direction and gradient pore size filter media, enabling the layered entrapment of impurities within the filter media and exhibiting excellent particulate retention capabilities.
Detailed Introduction

Features
Large-diameter structure and "W" fold design
High filtration area and excellent particulate retention capabilities
Outstanding chemical compatibility
Superior flow distribution design to ensure stable flow differentials
Product manufacturing environment: Cleanroom

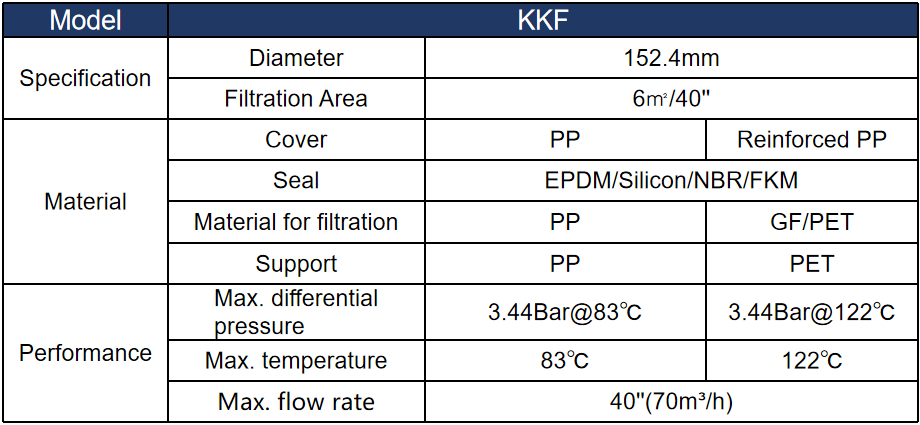

Cartridge informations

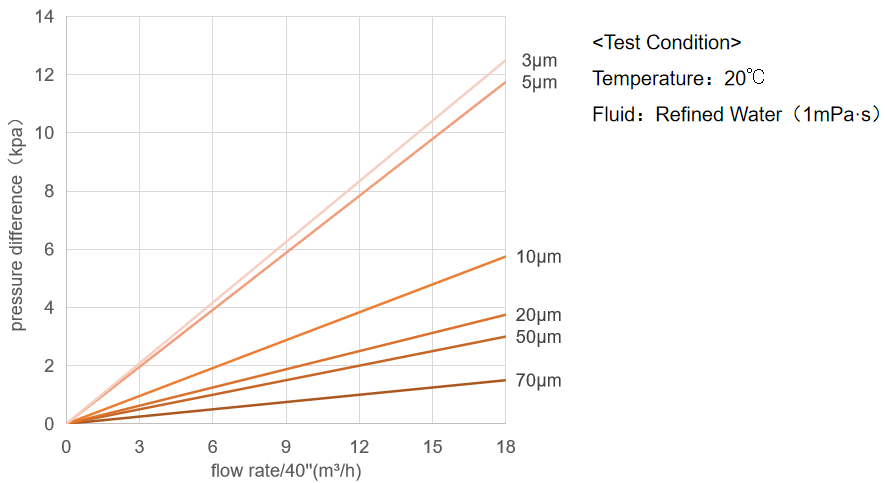

Flow Rate Properties
Applications
Cooling water, condensate of power plant
Raw materials and solvents in the biopharmaceutical industry
Various solvents, emergency cooling water, brine in petrochemical industry
Model Selection
KMF Series

The KMF series filter cartridges feature a large-diameter structure and high-strength support materials, allowing for high flow rates even under high pressure differentials while maintaining low flow resistance. The filter cartridges employ an outer-to-inner flow direction and gradient pore size filter media, enabling the layered entrapment of impurities within the filter media and exhibiting excellent particulate retention capabilities.
Detailed Introduction

Features
Large-diameter structure and "W" fold design
High filtration area and excellent particulate retention capabilities
Outstanding chemical compatibility
Superior flow distribution design to ensure stable flow differentials
Product manufacturing environment: Cleanroom

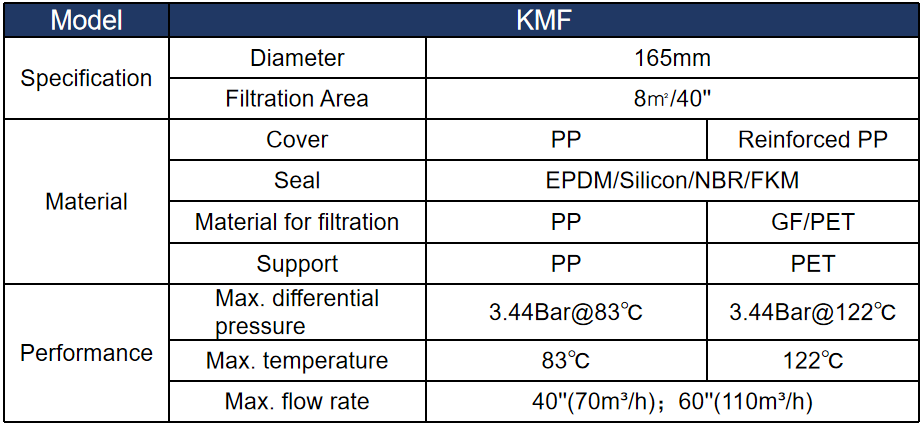

Cartridge informations
Flow Rate Properties
Applications
Filtration of process water in food
Filtration of condensate in power plants
Filtration of materials and solvents in the biopharmaceutical industry
RO security filtration, seawater desalination pre-treatment

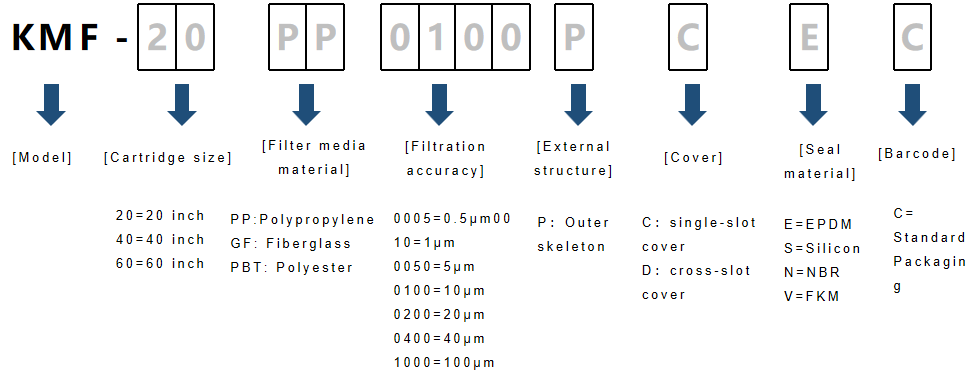

Model Selection
