Integrated Filter ElementManst Fluid Technology Co., Ltd. specializes in industrial environmental dust removal, solid-liquid separation, and filtration. Our main products include capsule filter cartridges, folding filter cartridges, wound filter cartridges, dust removal bags, etc. We can provide customers in various industries with comprehensive solutions for filtration, separation, and purification.

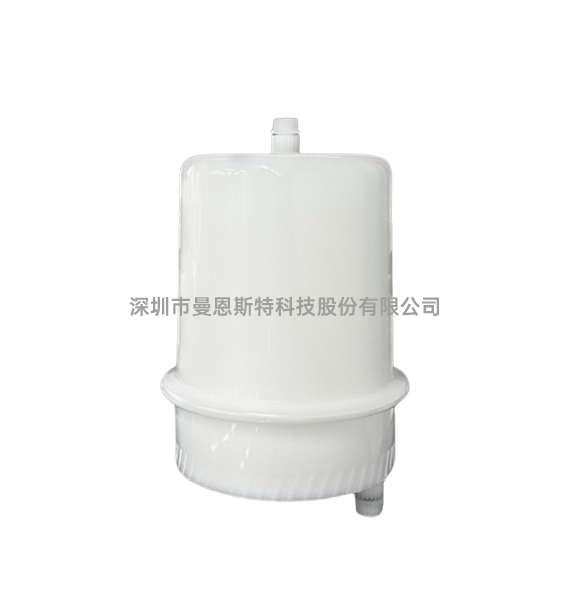

MS127 SeriesThe MS127 series products feature a design with exceptionally high flow rates, making them suitable for high-speed wide-web production lines. The unique flow channel and detachable structure design significantly reduce the residual media content before and after filtration. Furthermore, the highly concentrated design extends the service life of each individual product, thereby reducing the frequency of replacements.
Detailed Introduction- Features
Suitable for high speed and wide-web production lines, reducing the frequency of replacement
Safe, simple and convenient replacement
Separate recovery of filtered and unfiltered slurry
No contact between the internal fluid and the outside, improving the working environment
Reduced space between the cartridge and the housing, significantly reducing the loss of liquid in the housing
- Advantages
The filtered chamber is designed in an open style, significantly reducing residual media content.
With its unique inclined flow channel design, it effectively eliminates residual liquids more thoroughly.
- Applications
Various coating slurries
Various inks/pastes
Varaious solvents
Liquids containing toxic and hazardous substances

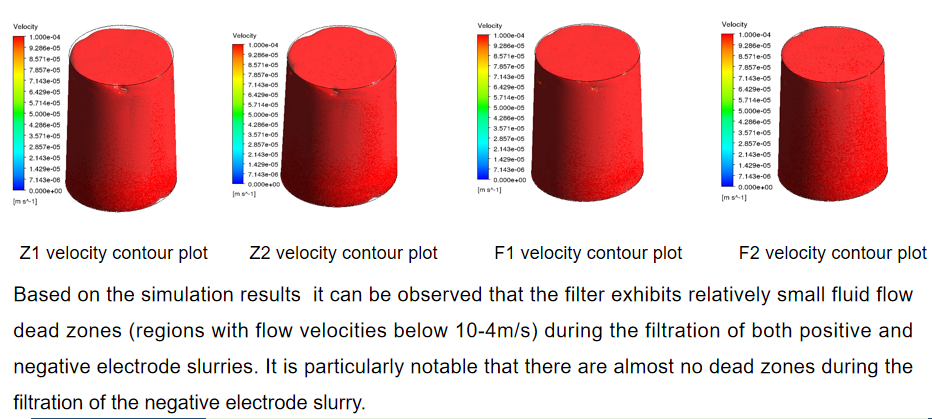

- CFD Simulation Analysis

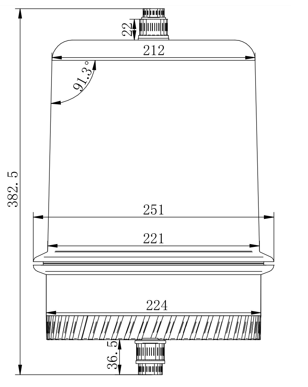

- Dimensions
- Model Selection

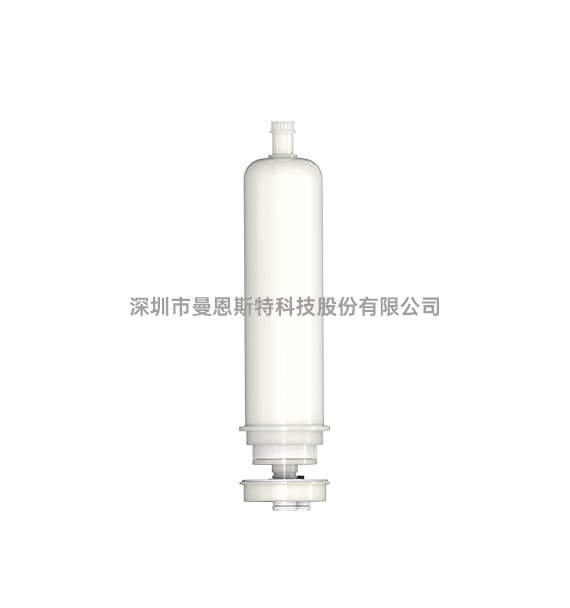

MS12 SeriesThe MS12 series integrated filters utilize high-quality filter membranes, providing a large effective filtration area, making them suitable for filtering larger volume solutions. The filter housing is made of polypropylene material, free from adhesives and other chemicals, ensuring no contamination of the filtered fluid. The filters are available in different specifications and sizes.Detailed Introduction- Features
Pure PP material, excellent chemical compatibility
Safe, simple, and convenient replacement
The top vent hole aids in efficient air circulation
No contact between the internal fluid and the outside, improving the working environment
- Advantages
The detachable design allows for easy replacement of the built-in filter cartridges
Significantly reducing operational costs
- Applications
Various coating slurries
Various inks/pastes
Varaious solvents
Liquids containing toxic and hazardous substances

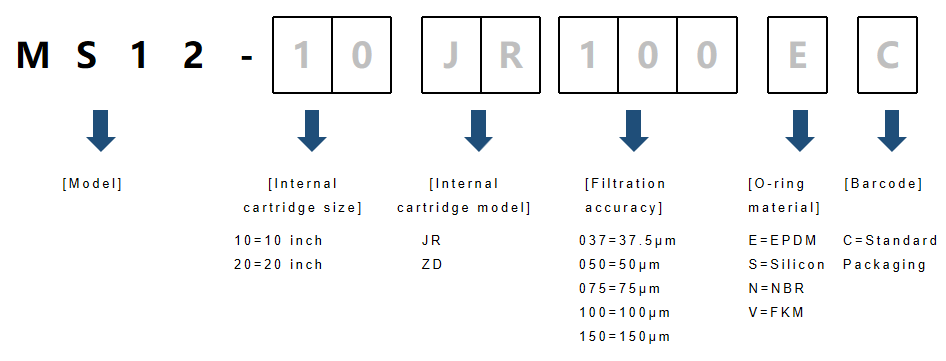

- Model Selection

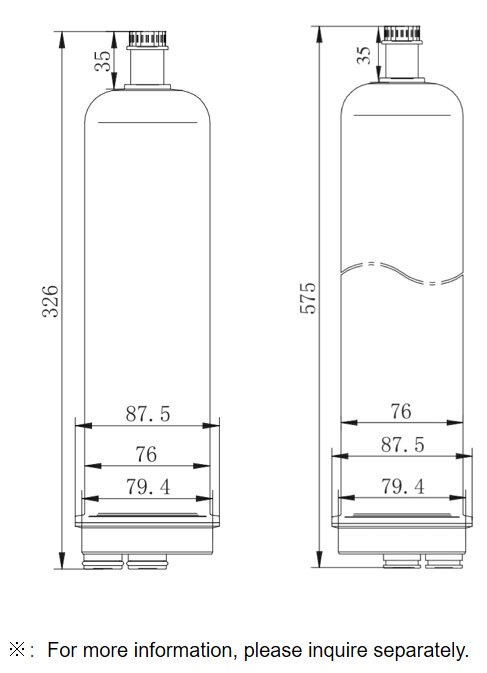

- Dimensions
